The Range

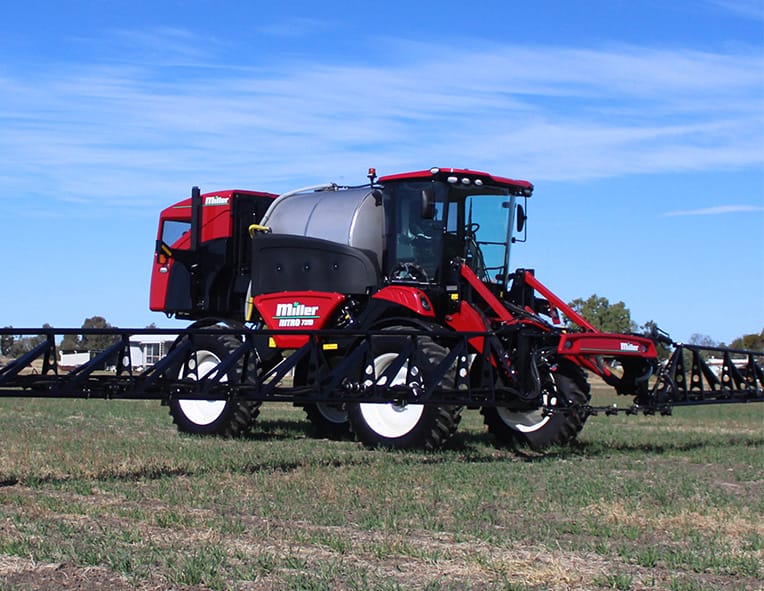

7310
Tank size: 4542 L (Stainless Steel)
Horsepower: 285 (rated) / 310 (peak) hp
Boom widths: up to 36m Learn More
Horsepower: 285 (rated) / 310 (peak) hp
Boom widths: up to 36m Learn More

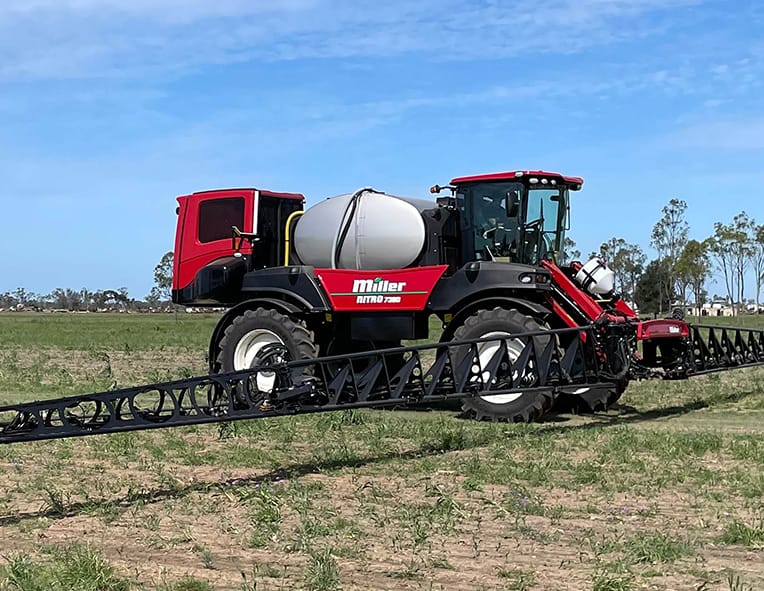

7380
Tank size: 6100 L (Standard)
8000 L (Optional)
Horsepower: 322 (rated) / 382 (peak) hp
Boom widths: up to 48m Learn More
8000 L (Optional)
Horsepower: 322 (rated) / 382 (peak) hp
Boom widths: up to 48m Learn More

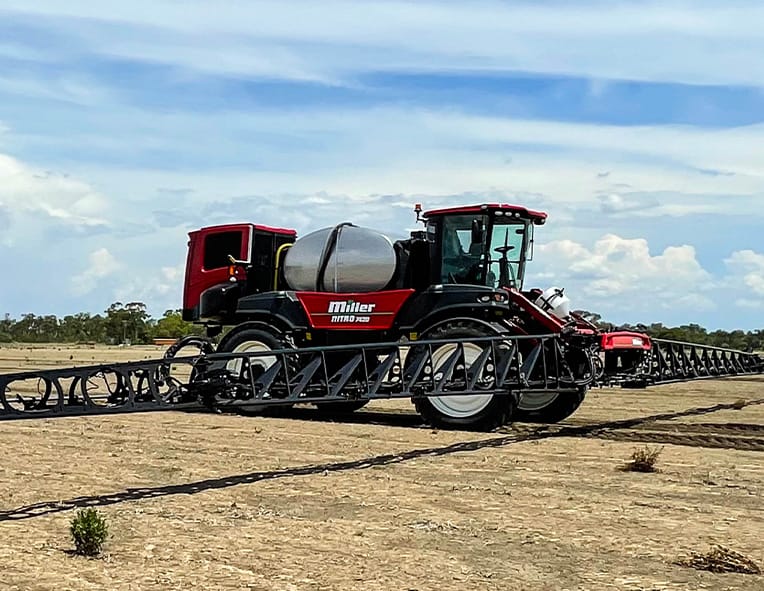

7420
Tank size: 6100 L (Standard)
8000 L (Optional)
Horsepower: 373 (rated) / 434 (peak) hp
Boom widths: up to 48m Learn More
8000 L (Optional)
Horsepower: 373 (rated) / 434 (peak) hp
Boom widths: up to 48m Learn More
Miller 7000 series specifications
Engine
Horsepower
Fuel tank
Cooling system
Alternator/batteries
Transmission
Final Drives
Travel speed
Steering
Suspension
Product Tank options
Rinse System
Crop Clearance
6.7 Litre (L) Tier 3
285 (rated) / 310 (peak) hp
568 L
Efficient Single Pass stacked top to bottom, Hydraulically driven variable speed fan with reverse capabilities
330 amp / 2 heavy duty – 1000 cca batteries
Hydrostatic drive with electronic controlled single Danfoss 165 cc, H1 series heavy-duty pump
Danfoss H 1 Series 80 cc drive motors with Dana Spicer® CO24 Torque Hubs
0 – 51 kph
Hydraulic with heavy-duty ball joints
4 wheel independent electronically controlled hydraulic suspension, hill side-assist, auto level for each leg
4542 L (Stainless Steel)
568 L poly tank with 5.08 cm quick fill. Electric standard / Auto Rinse optional
Up to 198cm (tyre dependant)
8.7 Litre (L) Cursor 9 Tier 3
322 (rated) / 382 (peak) hp
568 L
Efficient Single Pass stacked top to bottom, Hydraulically driven variable speed fan with reverse capabilities
330 amp / 2 heavy duty – 1000 cca batteries
Torq-Trac Hydrostatic Drive / Single Danfoss 210cc H1 drive pump
Danfoss H1 Series 110 cc Bi-Directional Drive Motors with Dana Spicer® CO 26 Torque Hubs
0 – 51 kph
Hydraulic with 2 steering cylinders.
4 wheel independent, auto level for each leg
6100 L (Standard) 8000 L (Optional)
6100 L - 568 L poly tank with quick fill. Electric standard / Auto Rinse optional 8000 L 668 L poly tank with quick fill. Electric standard / Auto Rinse optional
Up to 200 cm (tyre dependant)
8.7 Litre (L) Cursor 9 Tier 3
373 (rated) / 434 (peak) hp
568 L
Efficient Single Pass stacked top to bottom, Hydraulically driven variable speed fan with reverse capabilities
330 amp / 2 heavy duty – 1000 cca batteries
Torq-Trac Hydrostatic Drive /Single Danfoss 250cc H1 drive pump
Danfoss H1 Series 110 cc Bi-Directional Drive Motors with Dana Spicer® CO 26 Torque Hubs
0 – 51 kph
Hydraulic with 2 steering cylinders.
4 wheel independent, auto level for each leg
6100 L (Standard) 8000 L (Optional)
6100 L - 568 L poly tank with quick fill. Electric standard / Auto Rinse optional 8000 L 668 L poly tank with quick fill. Electric standard / Auto Rinse optional
Up to 200 cm (tyre dependant)
